Intelligent Panel

The Intelligent Panel is a DSUZ-mount, Ethernet-connected alarm and status panel. It provides system health and status information and discrete outputs to facilitate additional external alarms and indicators.

​

The indicators and API are customizable to suit system needs.


Download the data sheet

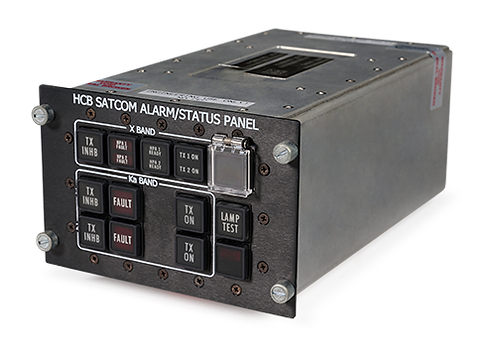

photo of dark gray alarm and status panel device

Features

  • Twelve customizable health/status indicators

  • Eight discrete outputs

  • MS2512C (DZUS) compliant

Dimensions
3.735” H x 5.740” W x 9.00” D​

Weight
10 lbs. max​

Specifications

​

  • Power Input Voltage: 28VDC

  • Max Input Current: 2 Amps Nominal

Indicators
X-Band System:

  • TX Inhibit

  • HPA Fault (per HPA)

  • HPA Ready (per HPA)

  • TX On (per HPA)


Each Ka-Band Antenna:

  • TX Inhibit

  • HPA Fault

  • TX On

Environmentally Qualified to the Following Standards​

  • Electrical Power – MIL-STD-704A

  • Temperature – RTCA DO-160G, Section 4, Categories A1

  • Altitude – RTCA DO-160G, Section 4.6.1, Category C2

  • Rapid Decompression – RTCA DO-160G, Section 4, Category A1

  • Temperature Variation – RTCA DO-160G, Section 5, Category B

  • Humidity – RTCA DO-160G, Section 6.3.2, Category B

  • Vibration – RTCA DO-160G, Section 8, Category S

  • Explosive Conditions – RTCA DO-160G, Section 9.6, Category E

  • Lightning – Indirect Effects – RTCA DO-160G, Section 22, Category A2C2 or A2E2

  • Electromagnetic Effects – MIL-STD-464C

  • Static Electricity Discharge (ESD) – RTCA DO-160G, Section 25.5, Category A

  • Crash Safety – RTCA DO-160G, Section 7, Category B

​
